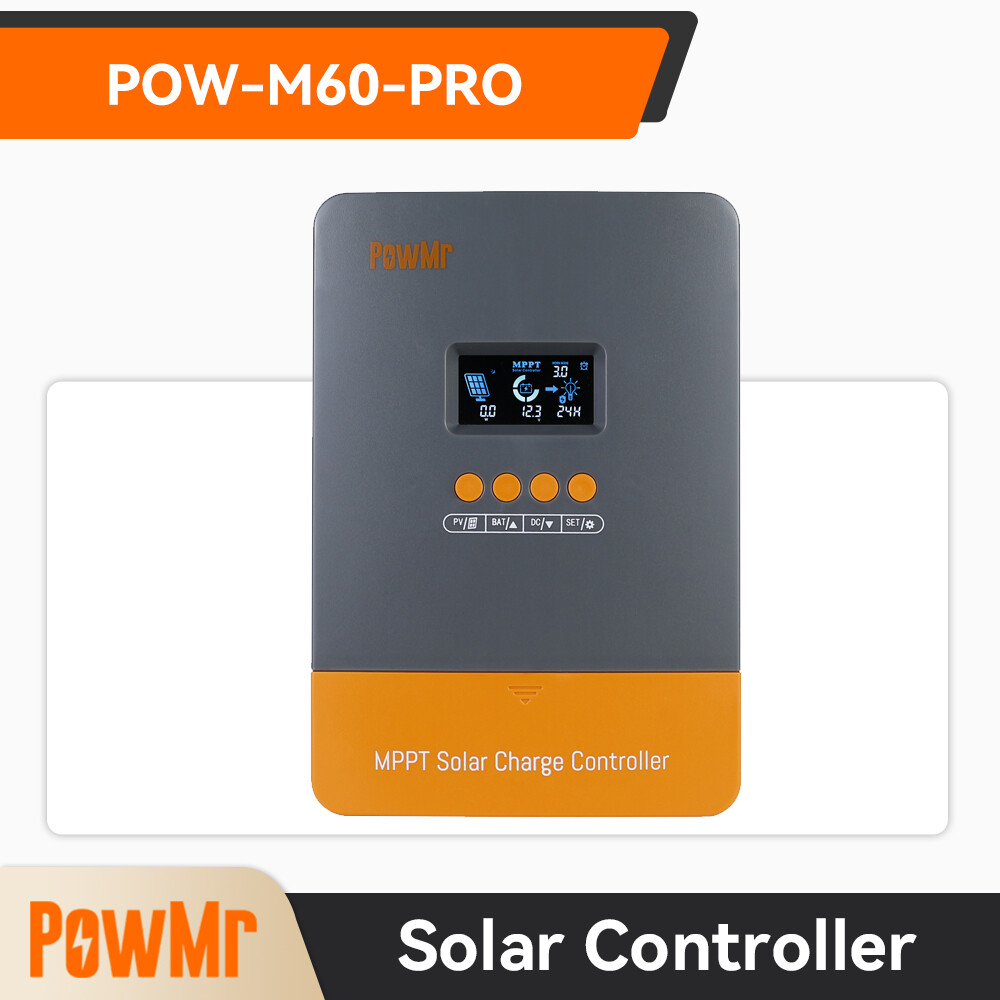

PowMr MPPT 60A Solar Charge Controller Work For 12V 24V 36V 48V Lithium Lead Acid Battery With LCD Display Max PV 160VDC Input

Selectable battery type Vented / Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user) Soft start time ≤1S, Dynamic response and recovery time 100us Max efficiency ≥98.1%, PV utilization ≥99% In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals MULTIPLE ELECTRONIC PROTECTIONS Short-circuting Reverse-current Overcharging Overload Over-discharging Reverse polarity protection Positive Ground 60A MPPT Charge Controller 12V/24V/36V/48V System Voltage Automatic Identify For sealed lead acid Vented gel And Lithium battery Battery System Voltage: DC9V~DC15V (12V) DC18V~DC30V (24V) DC32V~DC40V (36V) DC42V~DC60V (48V)Max. Solar Panels Input Power The maximum PV input voltage (Voc): DC160V Max Input Power: DC20V ~ DC80V (12V) DC37V ~ DC105V (24V) DC50V ~ DC160V (36V) DC72V ~ DC160V (48V) Intelligent Charging Protection Rated charge current: 60A / discharge current: 5A Powmr MPPT charge controller provides 3-stage charging (constant current(MPPT), constant voltage(Absorption Voltage), floating charge) ,offer Rapid,Efficient, and safe charging Advanced Ultra Fast Maximum Power Point Tracking Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%. OUR DESIGN FOR YOU COPPER COILS True MPPT controller, The Three copper coils play a step-down roles to make your system work more stable. TRANSFORMER Three Electronic transformer, more safe MULTIPLE ELECTRONIC PROTECTIONS: Short-circuting Reverse-current Overcharging Overload Over-discharging Reverse polarity protection PORTS DESIGN we consider that the larger diameter of the wire will be greater cost for customers, so we designed two connectors for each pos and negs on solar and batteries connectors Work with Inverter Through the inverter to power for the AC Load (Refrigerator/ Fan/ Washing machine/ computer and so on) CONNECTION DIAGRAM TIPs Always connect battery first!!! The disassembly sequence is contrary to the wiring order. NEVER connect the solar panel array to the controller without a battery DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller! connect the Inverter directly to the battery. Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. if input power is too low for max input power, it may be appears to have been discontinued. Parameter Setting Rules：Floating voltage Low voltage reconnect Low voltage discharge. The solar controller will stop output when the battery under 10.7V. Install the Charger controller to the battery as close as possible. Tighten the wire, Carefully read battery manuals before operation. When controller makes buzzing sound because of It's working hard to dissipate heat for your controller. Rest your heart, it will be stop when temperature return to normal. Make sure all connections going into and from the controller are tight. ❶【Software Update MPPT Design 】100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. ❸【Full System Protection】Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. and fan use BEARING technologies increase life UP TO 5000hrs in normal use. ❺【Notiction】If you use sealed lead acid, vented gel battery, and etc, you donn't need to set any parameters, the controller can adjuste automaticly and work normally; but if you use lithium batteries, you need to properly adjuste parameters according to the actual voltage of the battery, becauese the voltage of lithium batteries is unstable, such as acid battery 12V is 12V, lithium battery 12V may be 11.1V or 14.8V.
